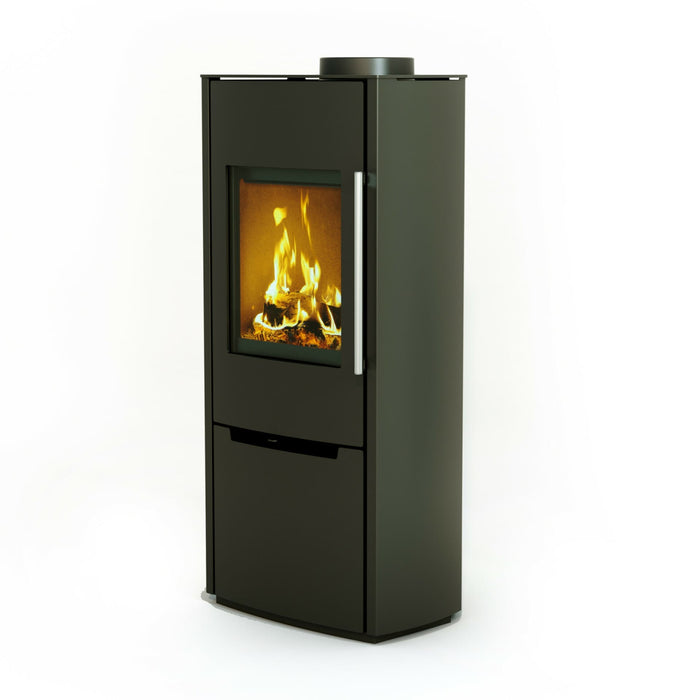

Schiedel wood burning stove is a high-efficiency model with a complete flue system designed for your home. Achieving up to 81% efficiency, it provides more heat with less wood compared to other wood-burning stoves.
Key Benefits:
- Sustainable Heating: Use local firewood to heat your home CO2-neutrally, independent of gas, electricity, and oil suppliers.
- High Efficiency: Class A+ combustion with optimal chamber design for high energy efficiency.
- Simple Operation: One lever for both primary and secondary combustion air.
- Durable Design: Air-cooled door handle and self-closing door for easy use.
- Adjustable Legs: For installation on uneven floors.
This stove, equipped with the Schiedel Permeter flue system, is perfect for homes with lower heating needs, offering the lowest emissions and lasting performance.
DEFRA Exempt & ClearSkies Level 5:
- DEFRA Exempt: Can be installed and used in Smoke Control Areas in the UK.
- ClearSkies Level 5 Certified: Exceeds Ecodesign Regulations for performance.
Distance to Combustibles:
| Model | Rear Distance | Side Distance | Floor Distance | Distance from Glass Front | Distance from Superimposed Hearth |
|---|---|---|---|---|---|
| Sargas 1 | 70 mm | 100 mm | 0 mm | 1200 mm | 225 mm |
| Sargas 3 | 50 mm | 400 mm | 0 mm | 1200 mm | 225 mm |
Stove Technical Details:
| Specification | Details |
|---|---|
| Model Names | Sargas 1 and Sargas 3 |
| Standard | EN 13240 RRF – 40 17 4674 |
| Rated Output | 6.2 kW |
| Efficiency | 81% |
| CO2 Emissions | 1125 mg/m³ |
| Dust Emissions | 6 mg/m³ |
| Flue Gas Temperature | 327 °C |
| Negative Pressure | 12 Pa |
| Weight | ~100 kg |
| Dimensions (W x D x H) | 526 mm x 417 mm x 1133.7 mm |
| Fuel Consumption | 2 kg/h |
